Slicing in 3D printing is a technique in which certain software slices the 3D model into layers of cross-sections and generates a G-code file containing information such as printing path, printing speed, material extrusion amount, etc. In short, slicing is like preparing a recipe for your 3D printer—it tells the machine exactly how to “cook” your model.
To ensure the printer follows a precise path, slice software converts intricate objects into a language that 3D printers can understand, which is the slicing process that divides a model into thin horizontal layers where each layer builds upon the last and prepares for the making process.
Slicing is the crucial step that impacts the final print, such as print time and material usage, and the structural integrity of the object hinges on the choices made during slicing. Therefore, mastering this process is crucial for consistently achieving high-quality prints. This guide walks you through the process of slicing and more related 3D printing tutorials you want to master.
Why Slicing Matters
Slicing is integral to the 3D printing process, determining the precision and robustness of the ultimate object. This process not only ensures that each layer is printed accurately but also optimizes the use of material and time, making it an essential component of the 3D printing workflow.
Here are listed for you the importance of slicing in 3D printing:
- Customizes Print Settings for Quality and Efficiency
Slicing allows you to adjust critical settings such as layer height, infill percentage, and support structures. These parameters directly influence the print's detail, strength, material usage, and printing time.
- Converts 3D Models into a G-code File
Slicing software breaks down the digital 3D model into thin, horizontal layers and calculates the exact path the printer's nozzle should follow. Moreover, it provides 3D printers with parameters like extrusion paths, speeds, and temperatures.
- Adds Structural Support Where Needed
For complex designs with overhangs or bridges, slicing software automatically generates temporary support structures to prevent sagging or collapse during printing. You can remove it after the printing is complete.
- Optimizes for Material and Printer Compatibility
Slicing software tailors settings to ensure the best performance for the chosen material and printer. Cause different materials (e.g., PLA, ABS, PETG), and printers require specific settings, such as print speed, temperature, and cooling. Slicing software tailors these settings to ensure the best performance for the chosen material and printer.
- Prevents Printing Failures
Slicing software helps you to preview the print layer by layer, helping identify potential issues like gaps, unsupported areas, or excessive overhangs. Fixing these problems before printing saves time and material.
- Maximizes Efficiency
Slicing software can calculate the best paths to minimize wasted material and unnecessary printer moves. Ensuring a faster and more efficient printing process.
How Slicing Software Works in 3D Printing
Generally, Slicing software works in four parts, which are conversion, setting, customization, and troubleshooting; each of them is crucial for the whole printing process.
Importing the 3D Model
Generally, importing the 3D Model (usually in formats like STL, OBJ, or 3MF) on slicing software, and the software checks the model for issues, such as non-manifold edges, holes, or thin walls, that could cause problems during printing, but some software includes repair tools to fix these issues automatically. By doing so, you don't need to set it yourself.
Generating toolpaths
According to the imported 3D model and height specified by the user, the slicing software is sliced horizontally into thin layers, and each slice represents a cross-section of the object, which means that the printer will build layer by layer. For each layer, the software calculates the path the printer's nozzle will follow to deposit material.
- Perimeters: Outlines of the layer.
- Infill: Patterns inside the object for strength and material efficiency.
- Supports: Temporary structures for overhangs or bridges.
Configuring Print Settings
Beyond the conversion, slicing software offers a comprehensive range of settings that can dramatically impact the print's outcome. Users can adjust parameters such as the thickness of each printed layer, the density of the internal structure, and the pace at which the printer operates. With its flexibility, it allows users to fine-tune the printing process to meet specific project demands, striking the perfect balance between speed and detail.
Users can adjust key parameters, such as:
- Layer Height: Affects detail and speed.
- Print Speed: Impacts quality and efficiency.
- Infill Density: Determines how solid or hollow the print will be.
- Temperature: Matches the material's melting point.
- Support Structures: Optional supports for complex geometries.
Simulating Print
The software has preview functions, allowing users to simulate the print process and troubleshoot potential issues before production. This means that it can not only aid in troubleshooting but also refine models to achieve optimal results, making slicing software.
Exporting G-code

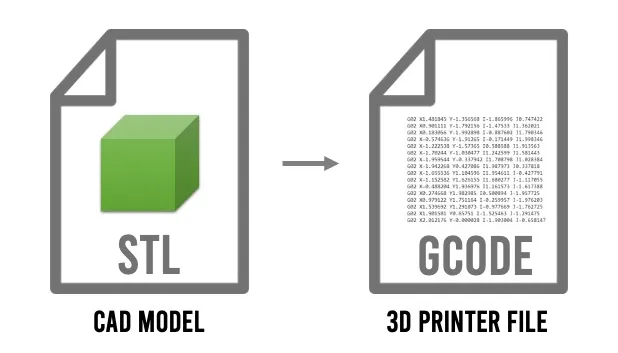

In this stage, the slicing software compiles all the data into a G-code, which contains precise instructions for the printer, such as nozzle movement (X, Y, Z coordinates), extrusion amounts, temperature settings for the nozzle, and print bed. At the end of the pre-work, send the G-code to the printer via an SD card, USB, or network connection, and the printer then follows the instructions to create the object layer by layer.
G-Code: The Backbone of the Slicing Process
After explanations of how the slicing software works in 3D printing, let's have an outlook on G-Code. In short, it is the set of instructions that tells a 3D printer how to bring a digital model to life, and it serves as a blueprint, guiding every movement and action of the printer to ensure the final object matches the design. You can customize instructions to suit the specific material and model, optimizing the print for strength, detail, or speed. This adaptability makes it suitable for everything from simple designs to complex structures.
G-code controls key aspects of the printing process, such as:
- Print Path: It defines the exact route the printer's nozzle follows to build the object layer by layer.
- Speed: It adjusts the printing pace, balancing efficiency with precision.
- Temperature: It regulates the nozzle and bed temperatures to ensure the material flows smoothly and bonds properly.
By understanding and fine-tuning G-code, you can unlock new possibilities in 3D printing, achieving high-quality productions that reflect your vision and creativity.
Best Slicing Software Options for Beginners
If you are embarking on a 3D printing journey and want to use suitable slicing software, choosing the software below could be useful for your slicing process. The best software for beginners would provide an intuitive user experience, enabling beginners to grasp slicing essentials without unnecessary elements. Furthermore, it also includes ease of navigation, robust features, and seamless integration with various 3D printer models.
Here are cutting-edge software solutions that cater to newcomers with their accessible interfaces and comprehensive features
- PrusaSlicer: Designed for 3D printing, Prusa Research created the robust and adaptable slicing program PrusaSlicer.It converts 3D models into G-code instructions that 3D printers can run, therefore priming them for printing. Although it's best for Prusa's series of printers—such as the Prusa i3 MK3 and Mini—it also fits a broad spectrum of other FDM and SLA printers.
- Cura: Designed by Ultimaker, Cura is an open-source slicing tool extensively applied in 3D printing. Its major purpose is to translate 3D models—usually STL, OBJ, or 3MF formats—into G-code instructions the printer can identify, therefore guiding the 3D printer to finish the printing.
- Tinkerine Suite: Offering a streamlined interface that demystifies the slicing process, making it approachable for those unfamiliar with 3D printing. Its user-centric design includes predefined print settings and material profiles, simplifying the setup process for beginners.
- Simplify3D: Another notable option, known for its extensive customization capabilities paired with an intuitive interface. It guides users through the slicing process with clear instructions and visual aids, allowing them to learn at their own pace. Simplify3D's compatibility with a wide range of 3D printers ensures a hassle-free setup, while its rich library of resources supports users in refining their skills and achieving precise, high-quality prints.
How Slicing Affects 3D Print Quality
The Precise Execution of Slicing
First and foremost, 3D prints' quality hinges on the precise execution of slicing, which shapes the model's final appearance and features. For instance, when slicing handles the transitional part of the model, it can lead to either seamless surfaces or visible lines, taking a step further and impacting aesthetics and tactile qualities. To sum up, effective slicing combines a harmonious blend of the object's visual appeal and its operational precision, ensuring that the printed components fit their intended roles perfectly.
Choosing Layer for Printing: Thicker or Finer
Secondly, adjusting a thicker or finer layer can directly influence the clarity of printed details, which means choosing the finer layers captures subtle features and creates a polished surface (ideal for parts where detail is paramount). This also means that you need to spend more time on longer print durations and increased material usage. Conversely, opting for thicker layers accelerates the printing process and conserves material but may compromise the intricate details and smoothness.
Orientation and Structure During Printing
Finally, the model's orientation and support structures during the printing are critical for making optimal print quality. To achieve this, you need to position the model effectively on the print bed, which can minimize the need for support. Moreover, when supports are necessary, your design and placement must facilitate easy removal to avoid surface blemishes. This strategic planning in slicing enhances the model's mechanical resilience and aesthetic integrity, ensuring that the final print meets both visual and functional expectations.
FAQs
Q1: What is the slicing process?
- The process of transforming a 3D model into a set of instructions for 3D printers is known as Slicing. Quite simply, it slices the 3D model into tiny layers and then determines how each layer should be printed (the tool path) to achieve the shortest time, highest strength, etc.
Q2: What should your first layer look like in 3D printing?
- The ideal Z-offset will have a first layer with a top surface that resembles the top surface of a completed 3D print: nicely planned-out extrusions that overlap without pushing up prior extrusions or bunching up at the edges. Its bottom surface features a clean and homogeneous pattern.
Q3: What layer height should I use for 3D printing?
- The thickness of each layer of deposited material is known as the 'layer height'. Layer height is one variable that influences the final quality of a 3D print on Fused Deposition Modeling, or FDM, printers like those used in building IT. Typical layer heights range from 0.1 to 0.5 millimeters.
Q4: What is the best nozzle size for a 3D printer?
- The most common size for a 3D printer nozzle is 0.4mm. This strikes a fair compromise between parameters, as a nozzle's diameter is vital in the 3D printing process.
Q5: How to clean a 3D printer nozzle?
- A common way for cleaning the nozzle is to use a chemical solvent such as acetone. Acetone is particularly effective for ABS filament. PLA, for its part, can be dissolved with ethyl acetate. For this procedure, simply immerse the nozzle in acetone or solvent for a few hours.
Conclusion
By mastering the skill of slicing, you can realize the full potential of 3D printing, converting complicated digital designs into tangible, high-quality models. Understanding the nuances of slicing software and the critical role of G-code allows you to fine-tune each print to fit your project's specific requirements. With skill and smart trial, you may customize your settings to get the ideal combination of detail, strength, and efficiency. As your slicing skills improve, you'll be better ready to take on increasingly complex projects, pushing the limits of 3D printing's capabilities. Accept the challenge of learning and experimenting, and watch as your ideas come to life with accuracy and artistry.
