Ever wonder why that mountain way off in the distance doesn't tank your FPS? That's the magic of Level of Detail (LOD) at work. LOD helps games run smoother by reducing the complexity of objects that are far away—freeing up system resources without most players even noticing a difference.
In this guide, we'll explain LOD, why it matters in games and animation, and how using optimized models based on distance boosts performance.
What is the Level of Detail (LOD) in 3D Modeling?
Level of Detail (LOD) in 3D modeling refers to creating multiple versions of a 3D model with different levels of complexity — meaning different numbers of polygons or details — and switching between them depending on how far the model is from the camera.

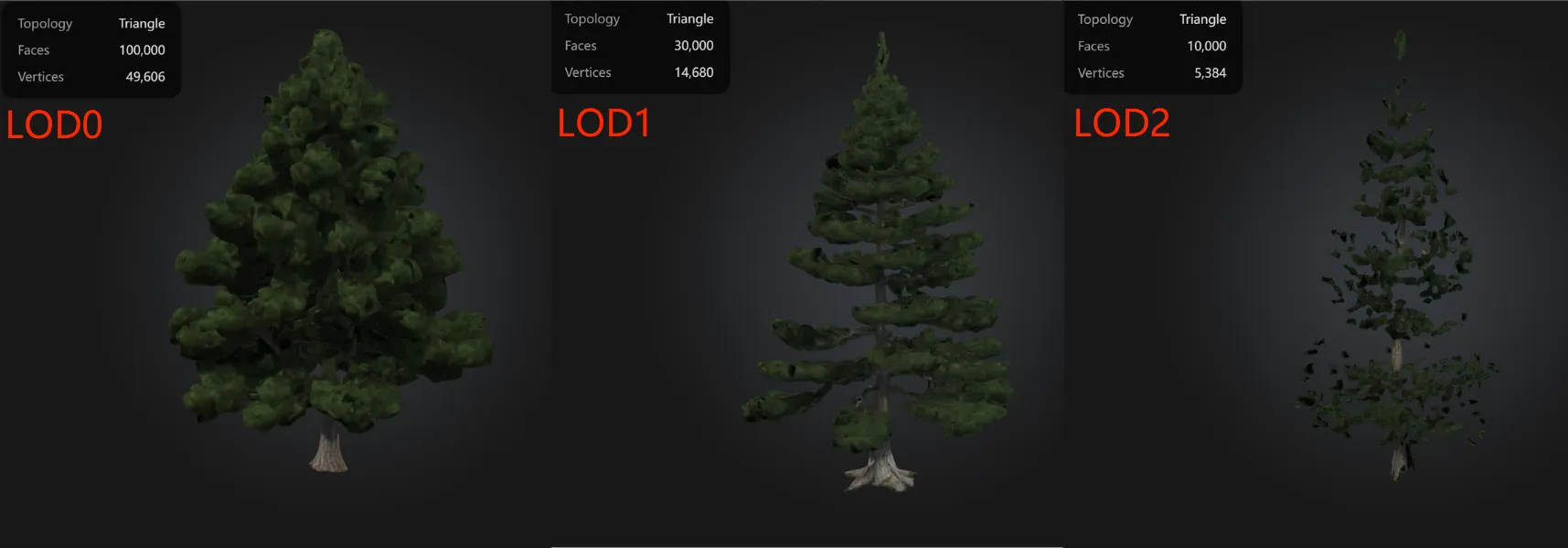

The basic idea is that the farther away the object is, the simpler the version that's shown, because the player or viewer can't see the fine details from a distance anyway. This saves a ton of computing power and helps games, simulations, or animations run faster and more smoothly without sacrificing visual quality up close. Most 3D artists or game developers create several LODs for a model, like LOD0 (full detail), LOD1 (less detail), LOD2 (even less), and so on, automatically swapping them during runtime.
How LOD Systems Work in Computer Graphics
LOD systems are ingeniously designed to adaptively manage 3D models, ensuring efficient resource allocation in virtual environments. As users traverse these spaces, these systems intelligently select the appropriate model version from various complexities, tailoring the visual detail to the model's proximity to the viewer. This dynamic selection ensures that computational resources are used effectively, enhancing both performance and visual fidelity.
Beyond merely adjusting model complexity, modern LOD systems encompass a broad array of rendering components, including texture resolution and shader detail. By scaling down texture detail for objects further away, memory usage is optimized without a noticeable loss of visual quality. Similarly, shaders can be simplified for background elements, easing the load on rendering processes and allowing for smoother performance.
Crucially, the transition between different LOD levels must be seamless to maintain a cohesive visual experience. Cutting-edge LOD systems employ sophisticated techniques to manage these transitions fluidly, ensuring that the viewer's experience remains uninterrupted by abrupt changes.
This careful orchestration is vital for delivering high-quality visuals that maintain consistent performance, underscoring the importance of LOD systems in contemporary computer graphics.
Types of LOD Techniques
Level of Detail techniques are fundamental for balancing performance with visual fidelity in 3D models. Discrete LOD (DLOD) offers a systematic approach by providing multiple versions of a model, each tailored for specific viewing proximities. These versions are either manually crafted or optimized through algorithms, ensuring that the performance load is managed effectively depending on the viewer's position relative to the model.
Discrete LOD (DLOD)
DLOD's structured methodology makes it a reliable choice in game development and real-time applications. Each model version is designed to maintain essential visual characteristics while optimizing resource usage. However, transitions between these versions need careful handling to avoid noticeable shifts that can disrupt immersion. Developers often use techniques like gradual blending to ease these transitions, helping to maintain a consistent visual experience that aligns with user expectations in high-fidelity environments.
Continuous LOD (CLOD)
Continuous LOD (CLOD) dynamically modifies model complexity in real-time, responding to changes in viewing conditions. Unlike its discrete counterpart, CLOD offers a fluid and seamless reduction of detail, crucial for maintaining coherence in complex visual environments.
It enables the enhancement of visible sections of a model while simplifying less critical areas, thus optimizing resource allocation without sacrificing detail where it's most needed. Though more challenging to implement, CLOD's capacity to deliver consistent visual quality makes it highly advantageous in applications requiring both high performance and visual excellence.
LOD in Game Development
In game development, managing graphical complexity is a big part of building large, detailed worlds. Game engines like Unreal and Unity have built-in tools that help with this. They automatically adjust how detailed a model looks based on how close it is to the camera, so the system can focus power where it matters most.
Using LOD properly is key for keeping games running smoothly. Developers set up different versions of a model—like LOD0 with full detail and LOD4 or LOD5 with much simpler shapes. This way, things that are close to the player look amazing, while far-off objects don't waste extra resources.
Since games need to run well on everything from powerful PCs to mobile phones, balancing looks and performance is critical. LOD systems help by making sure that models are optimized for different devices. With good LOD setups, players get great graphics and steady performance, no matter what they're playing on.
LOD in XR and Virtual Reality
In XR and VR environments, keeping the experience smooth is everything. LOD systems help by making sure the computer focuses on rendering the things the user is looking at while using fewer resources in the background. This keeps the visuals sharp and the experience immersive without overloading the system.
Since VR needs two images at once to create depth, smart detail management is even more important. LOD systems keep objects near the user crisp and detailed while simplifying things at the edges. This careful balance helps prevent lag or visual glitches that could break the feeling of being inside the virtual world.
On mobile XR devices, where hardware is more limited, LOD strategies become even more critical. Developers have to optimize not just the models, but also textures and shaders to run efficiently. With smart tuning, it's possible to deliver beautiful, interactive experiences that work well across a wide range of devices.
LOD for 3D Printing and Physical Production
In 3D printing, Level of Detail (LOD) plays a huge role in making sure the printed object matches the digital model accurately. Unlike in digital worlds, where LOD is about efficiency, 3D printing requires a focus on high detail and polygon counts for physical accuracy. It's all about making sure the print reflects every nuance of the digital design.
When preparing a model for 3D printing, using LOD well can help reduce file sizes without losing important details. By simplifying less critical parts, designers can save on material and print time while keeping the key features intact. This is especially helpful in complex designs where precision is crucial and technology limitations need to be considered.
LOD isn't just about geometry—it also applies to material properties. For instance, Physically Based Rendering (PBR) models use textures and materials that mimic real-world characteristics. By adjusting LOD levels, these models not only look great but also ensure the printed object is strong and practical for real-world use.
AI-Powered LOD Generation and Optimization
AI-Powered Tools for LOD Model Generation

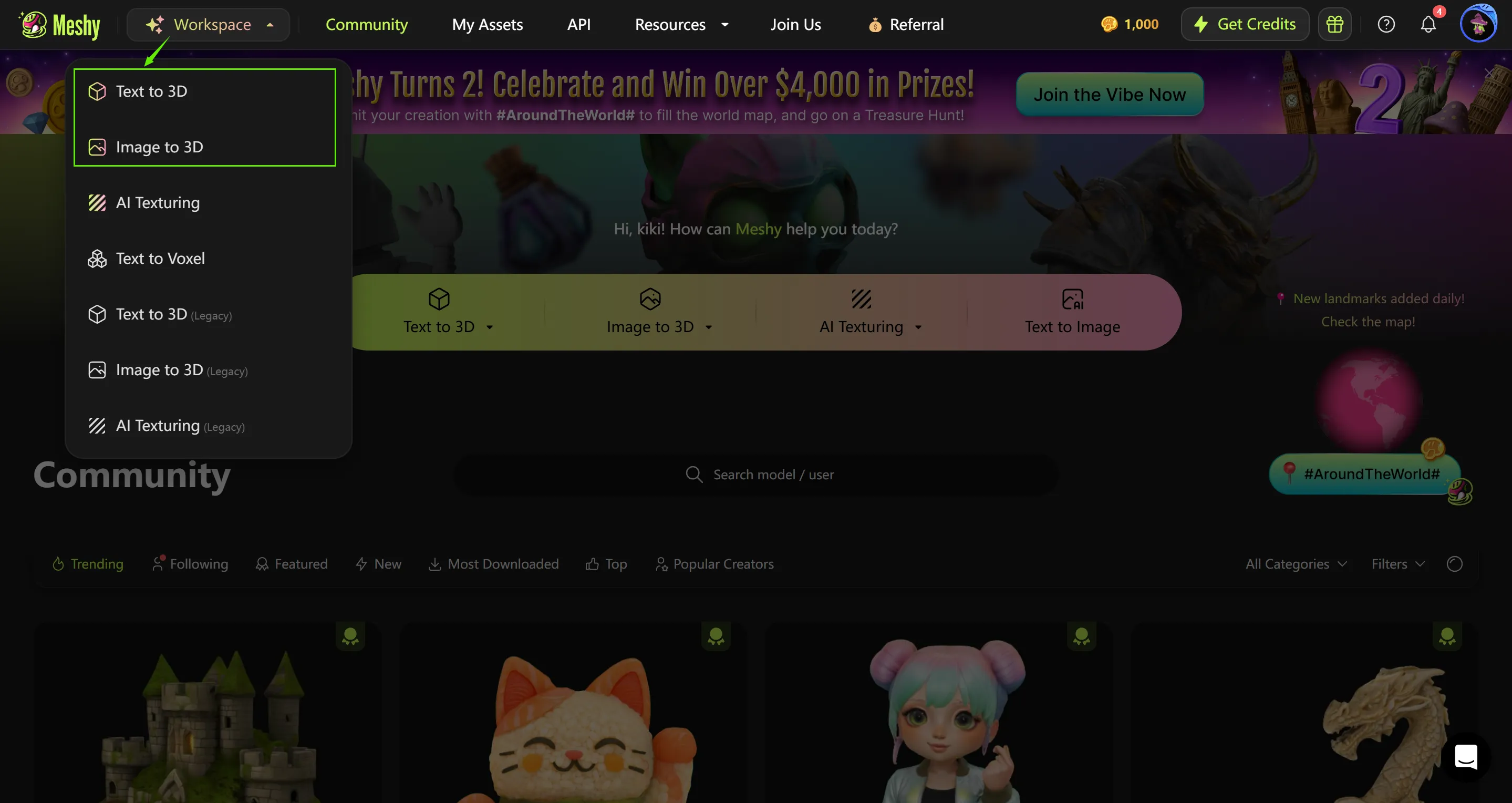

Adding AI-powered tools to your LOD workflow is a game changer for 3D modeling and rendering. With modern AI tools like Meshy, creating different LOD versions from a detailed model is much faster and easier.

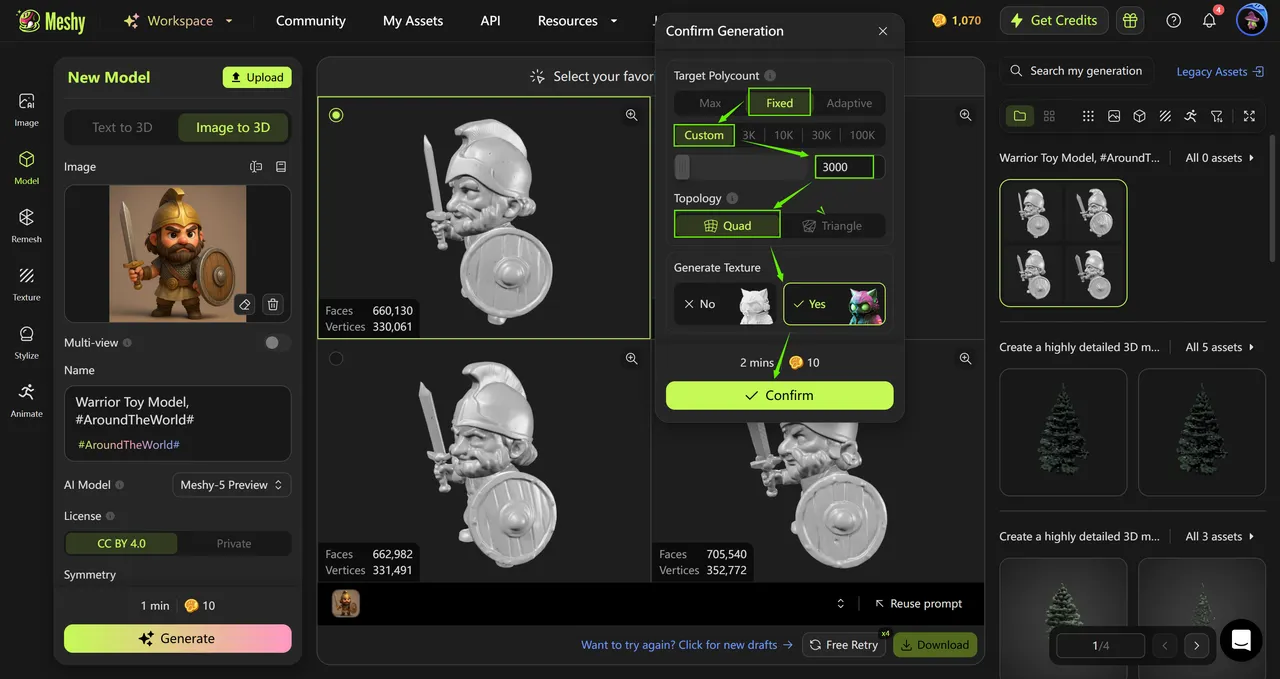

For instance, a detailed character model with over 100k target polycount can be simplified down to a 3k polycount while retaining visual fidelity, ready for mobile deployment. You just need to input a line of words or upload images to choose a model that can be simplified, so performance improves without losing quality.
Neural Networks in LOD Rendering
New LOD methods are also using neural rendering, which takes things to the next level. Neural networks help predict and add detail where it's needed, making models look more realistic while improving performance.
Neural rendering methods, like NVIDIA's DLSS or NeRF-based systems, can upscale lower-resolution models in real-time, preserving edge sharpness and fine texture details. This allows LOD systems to be even more lightweight without compromising visual quality.
| Technology | Principle | Relation to LOD | Example Use Cases |
|---|---|---|---|
| DLSS | AI upscales image resolution | Renders low-resolution models, then enhances details with AI | High-frame-rate games, 4K display rendering |
| NeRF | AI "imagines" and renders new viewpoints | Infers scene structure from images, eliminating the need for high-poly models | Scene reconstruction, VFX, digital twins |
Best Practices for Implementing LOD
1. Start with A Highly Detailed Base Model
A good LOD setup starts with a highly detailed base model, which is then simplified in steps. This way, you keep the best level of detail at the core, and simplify the rest to boost performance without losing the overall look. The focus is on reducing complexity in less visible parts while keeping the model's most important features intact.
2.The Power of Normal Maps in LOD
Using techniques like normal mapping helps add surface detail without increasing the geometry. This makes the model look more realistic by simulating textures and depth, even in simplified versions. It's key to keeping the model looking detailed, even when it's not as complex geometrically.
3. Let Players Choose Their Performance
To make sure everything runs smoothly, it's important to test LOD transitions in real conditions. Allowing users to adjust detail levels based on their device makes the experience more personalized. While automated LOD systems can speed things up, manual adjustments are still needed to ensure the highest quality across different devices.
Conclusion
In conclusion, understanding the Level of Detail (LOD) is essential for anyone diving into 3D modeling, game development, or XR experiences. By managing the complexity of models effectively, you can ensure your projects run smoothly and look great. Whether you're working on real-time rendering or preparing models for 3D printing, mastering LOD can improve both performance and visual appeal.
With AI now playing a bigger role in LOD workflows, the potential for greater efficiency and realism is more exciting than ever. Tools like Meshy make it easy to generate multiple levels of detail automatically. Its powerful features and beginner-friendly interface mean you can jump in without a steep learning curve. Keeping up with these innovations helps you stay ahead in the fast-moving world of digital creation.
